BRAINBOX EEG-1166 - 256 channel system

EEG-1166 - 256 channel system.

General.

The BRAINBOX® ETHERNET SYSTEM is intended for all sorts of EEG investigations and sleep recordings. Offering both very small size for ultra portability and larger types for operator convenience.

A BRAINBOX® EEG-1166 type amplifier is small and light enough to be carried around by the patient without much inconvenience, making it ideal for long-term EEG recordings of ambulant patients. The amplifier is connected by a thin and flexible cable to further enhance the mobility of the patient during long-term investigations. All parts are designed for maximum mobility. The EEG-1166 type amplifier can be daisy chained up to 4 units for 256 channels. The highest channel can be switched to SpO2 and Event.

Electrode connections:
For quick and easy connection of Electrode Caps, all amplifiers are equipped with multipin connectors.

For the connection of electrodes with standard Touchproof Plugs, the EEG-1166 amplifiers can be connected via a clip-on INBOX-1166. The INBOX-1166 is placed over the EEG-1166 amplifier as a clip and connects the multi pin connector to 64 Touch Proof inputs for EEG, G1/G2 and Ground Reference.

For Touchproof plugs a EEG-1166 amplifier can also use a separate INBOX-1066. This is a somewhat larger box designed for flexibility and is connected to the EEG-1166 type amplifier with a flat cable.

Isolation:
For galvanic safety isolation, the EEG-1166 amplifiers use a separate ISO-101. One ISO-101 isolator box can connect to max. 4 amplifiers EEG-1166.

Interface connection of BRAINBOX® :
All BRAINBOX® devices connect to the BRAINNET connections on the Ethernet-102 (V2) interface. For the EEG-1166 amplifiers via the ISO-101.

Network Interface:
The BRAINBOX® ETHERNET SYSTEM communicates with the PC by means of the ETHERNET-102 (V2) INTERFACE that connects to a standard 10/100 network port on a PC. The third party EEG-analysis software is responsible for proper implementation of the used control protocol, acquisition and analysis. Interfacing is described in document: BRAINBOX® Software Protocol V1.0. The PC software controls Calibration, Electrode Check, etc. of the amplifier over the same thin cable as the digitized EEG signals are transmitted. Power for the amplifier(s) is also supplied over this interface cable.

EEG-1166 - 256 channel system specifications.

256 Galvanic isolated (floating) Unipolar EEG inputs.
8 digital inputs.
8 digital outputs.
Digital data output to PC, no ADC in the PC is needed.
Real input calibration, CAL voltage is applied to electrode input.
Impedance check of electrodes on PC screen.
Simple interfacing by using Braintronics Proprietary protocol on top of the standard ETHERNET TCP/IP protocol.
Possibility tot use 1 EEG channel for SpO2 and EVENT. (NONIN X-Pod and EVENT button have to be added).

possible BRAINBOX® amplifier combinations.

Basic requirements.

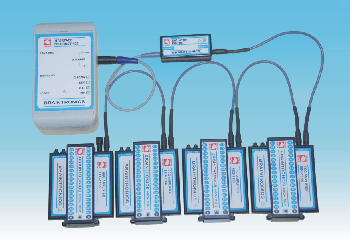

This is a specification of all parts for a complete system with four 64 channel mini-Amplifiers.

Qty	Code	Name	note
4	11BB	EEG-1166	68-pin connector input
1	16BB/A	INBOX-1166A (1-64)	Small clip-on INBOX with TP connectors
1	16BB/B	INBOX-1166A (64-128)	Small clip-on INBOX with TP connectors
1	16BB/C	INBOX-1166A (129-192)	Small clip-on INBOX with TP connectors
1	16BB/D	INBOX-1166A (193-256)	Small clip-on INBOX with TP connectors
1	4BB	ISO-101	BrainBus Isolator box
1	7BB	ETHERNET-102	Ethernet Interface
1	31BB	ETHERNET-102 V2	Ethernet Interface Version 2
1	2BA	Short BrainBus cable	Connects EEG-1166 to ISO-101
3	2BA	Short BrainBus cable	Connects both amplifiers
1	1BA	BrainBus termination	Terminates the unused BrainBus connection
1	14BA	Short BrainNet cable	Connects to ISO-101 at patient side
1	19BA	6 mtr BrainNet cable	Long connection between two 14BA’s
1	14BA	Short BrainNet cable	Connects long cable to ETHERNET-102
1	21BA	PWR-24/15	Medical Grade adapter 24 / 15 Watt

Options for EEG-1166 systems:

Qty	Code	Name	note
1	12BB	Nonin X-pod SpO2	With plug for BRAINBOX® system
1	23BA	Nonin sensor 8000SS	Soft Sensor Small
1	24BA	Nonin sensor 8000SM	Soft Sensor Medium
1	25BA	Nonin sensor 8000SL	Soft Sensor Large
1	26BA	Event switch	Event switch with cable for BRAINBOX® system
1	17BB/A	INBOX-1066A (1-64)	Large INBOX connectable via flat cable
1	17BB/B	INBOX-1066A (65-128)	Large INBOX connectable via flat cable
1	17BB/C	INBOX-1066A (129-192)	Large INBOX connectable via flat cable
1	17BB/D	INBOX-1066A (193-256)	Large INBOX connectable via flat cable
1	17BA	IP Address Reset Plug	Resets IP Address if forgotten
	RJ45	RJ45 Crossing cable	Network connection cable
		TP jumper cable	GND-GND connection between amplifiers
