INBOX-1042.

General.

The INBOX-1042 is a separate input box for the BRAINBOX® mini EEG Amplifiers. It is connected to the EEG-1142 via a flat cable. The INBOX-1042 offers more flexibility than the clip-on INBOX-1142, like in a setup with a switchbox between the patient and the amplifier for electrical epilepsy stimulation with implanted electrodes.

The INBOX-1042 is available with encoding for 2 BRAINBUS Device addresses (channel ranges).

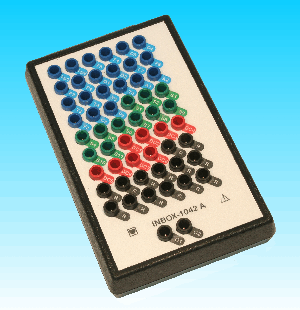

INBOX-1042 top side without flatcable

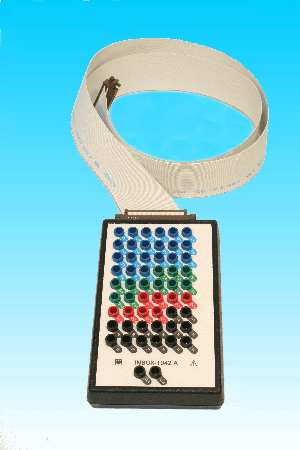

INBOX-1042 top side with flatcable connected to the box

INBOX-1042 specifications.

Inbox
Large box connectable via flat cable
Touchproof EEG sockets
32
Tochproof G1 - G2 sockets
2
Touchproof Gnd sockets
14
Touchproof DC sockets
8
BRAINBUS address coding possibilities
2
Channel Identification type A (Address 1)
1-42
Channel Identification type B (Address 2)
43-84

Code number INBOX-1042.

Address type
Channel range
order number
INBOX-1042-A
1 - 42
18BB/A
INBOX-1042-B
43 - 84
18BB/B

Code number 68-pin flat cable for INBOX-1042.

Address type
Length
order number
68-pin flat cable
15 cm
68-pin flat cable
1 mtr

Cross reference table INBOX


Braintronics address
