INBOX-1142.
|
INBOX-1142. |
General.

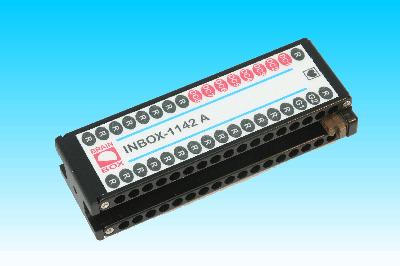

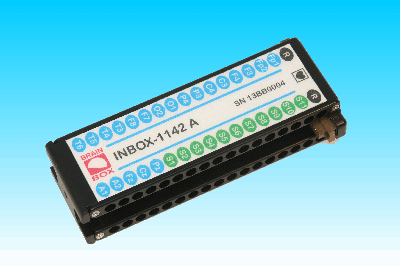

These touch proof input boxes are used with BRAINBOX® EEG-1142 amplifiers. The input box is placed over the amplifier resulting in a very compact module with a size of 9.5 x 11 x 3 cm (including amplifier) These inboxes are available in 2 different address types. The Photos at the right side show the INBOX-1142 top and bottomside. |
 |
|
 |
INBOX-1142 specifications.
| Inbox | |
| Clip-on for smallest size possible |  |
| Touchproof EEG sockets | 32 |
| Touchproof DC sockets | 8 |
| Touchproof Gnd sockets | 26 |
| G1/G2 sockets | 2 |
| BRAINBUS address coding possibilities | 2 |
| Channel Identification type A (Address 1) | EEG: 1-32 DC: 1-8 |
| Channel Identification type B (Address 2) | EEG: 1-32 DC: 1-8 |
Code number INBOX-1142
Address type |
Channel range | order number |
|---|---|---|
| INBOX-1142-A | 1 - 42 |
13BB/A |
| INBOX-1142-B | 43 - 84 |
13BB/B |
